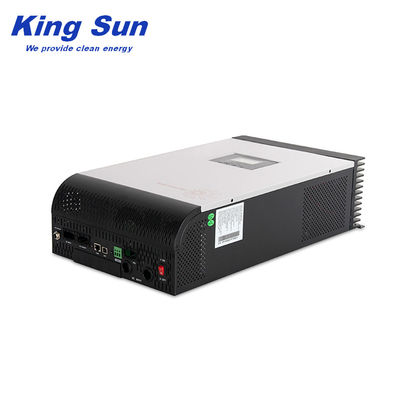

5000W Off Grid Solar Inverters,
240V Grid Hybrid Solar Power Inverter
• Rated power: 1-5KW
• Pure sine wave output
• Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
• Bult in MPPT 60A/80A solar charge controller
• Combining solar system, AC utility, and battery power source to supply continuous power
• Overload, short circuit and Deep discharge protection
• Cold start function
• Support USB, RS485 monitoring function with free CD
• WIFI remote monitoring (optional)
• Compatible to generator
• Support parallel operation up to 3 units (available for 3KW-5KW 48V)
One of the biggest issues of a solar power system is efficiency. The cost of building and installing a system is expensive, and those who are willing to make the financial investment in solar energy want to be sure to get their money's worth. Not only do the solar cells need to convert the sun's energy to electricity efficiently, but the solar inverter has a responsibility in efficiency as well. Manufacturers of inverters are working to improve their products' efficiency in order to make the products more marketable and attractive to those interested in solar power. Any possibility of saving more money in the use of a solar power system will increase the odds of people converting to solar power and easing the demands of the fossil fuels and oils on which American society so heavily relies.
|MODEL||GT18-1012 VPM||GT18-2024 VPM||GT18-3024 VPM||GT18-3048 VPM||GT18-4048 VPM||GT18-5048 VPM|
|Default Battery System Voltage||12VDC||24VDC||48VDC|
|Rated Power||1000VA 1000W||2000VA 2000W||3000VA 3000W||3000VA 3000W||4000VA 4000W||5000VA 5000W|
|Waveform||Pure sine wave|
|AC Voltage Regulation (Batt.Mode)||220VAC~240VAC(Setting)|
|Transfer Time||10ms(For Personal Computers) 20ms(For Home Appliances)|
|Selectable Voltage Range||170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) 184~253VAC(VDE)|
|Frequency Range||50Hz 60Hz (Auto sensing)|
|Floating Charge Voltage||13.7VDC||27.4VDC||54.8VDC|
& AC CHARGER"
|Maximum PV Array Open Circuit Voltage||55VDC||100VDC||145VDC|
|PV Array MPPT Voltage Range||15~55VDC||30~80VDC||64~130VDC|
|Standby Power Consumption||2W|
|Maximum PV Array Power||625W||1250W||4000W|
|Maximum Solar Charge Current||60A||80A|
|Maximum AC Charge Current||10A or 20A||20A or 30A||60A|
|Maximum Charge Current||80A||80A||140A|
|Machine Dimensions (W*H*D)(mm)||225*355*92||272*355*100||297.5*468*125|
|Package Dimensions (W*H*D)(mm)||410*300*78||485*393*251||638*395*241|
|Humidity||5% to 95% Relativ Humidity (Non-condensing)|
|Operating Temperature||-10°C -55°C|
|Storage Temperature||-15°C -60°C|
This is a multi-function inverter/charger, combining functions of inverter, MPPT 60A/80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Q one.Do you have MOQ?
Depands on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q two.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q three .How about the after sale service?
1)We will always keep the quality the same with the same and if there is something with the quality,we will make compensaton for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will slove the problems in the selling for our coustomers.
Q four.When can I get a price?
We usually quote within 24hours after we get your inquiry.
An off-grid solar system (off-the-grid, standalone) is the obvious alternative to one that is grid-tied. For homeowners that have access to the grid, off-grid solar systems are usually out of question. Here's why :
To ensure access to electricity at all times, off-grid solar systems require battery storage and a backup generator (if you live off-the-grid). On top of this, a battery bank typically needs to be replaced after 15 years. Batteries are complicated, expensive and decrease overall system efficiency.
